943

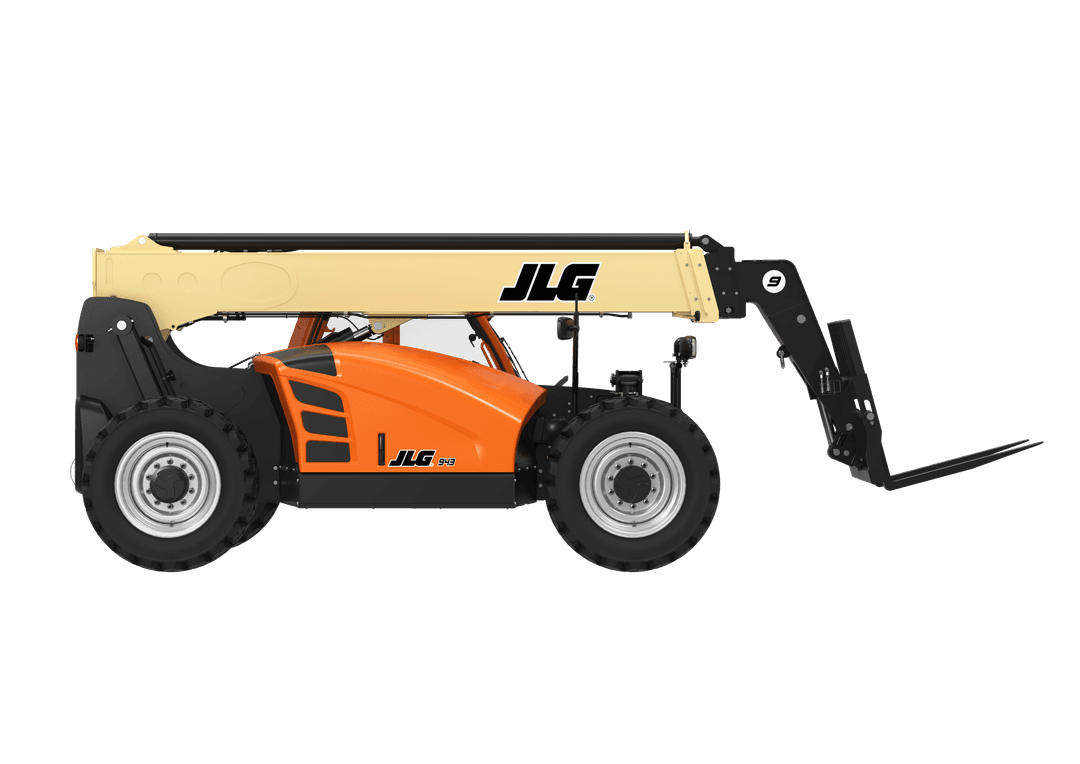

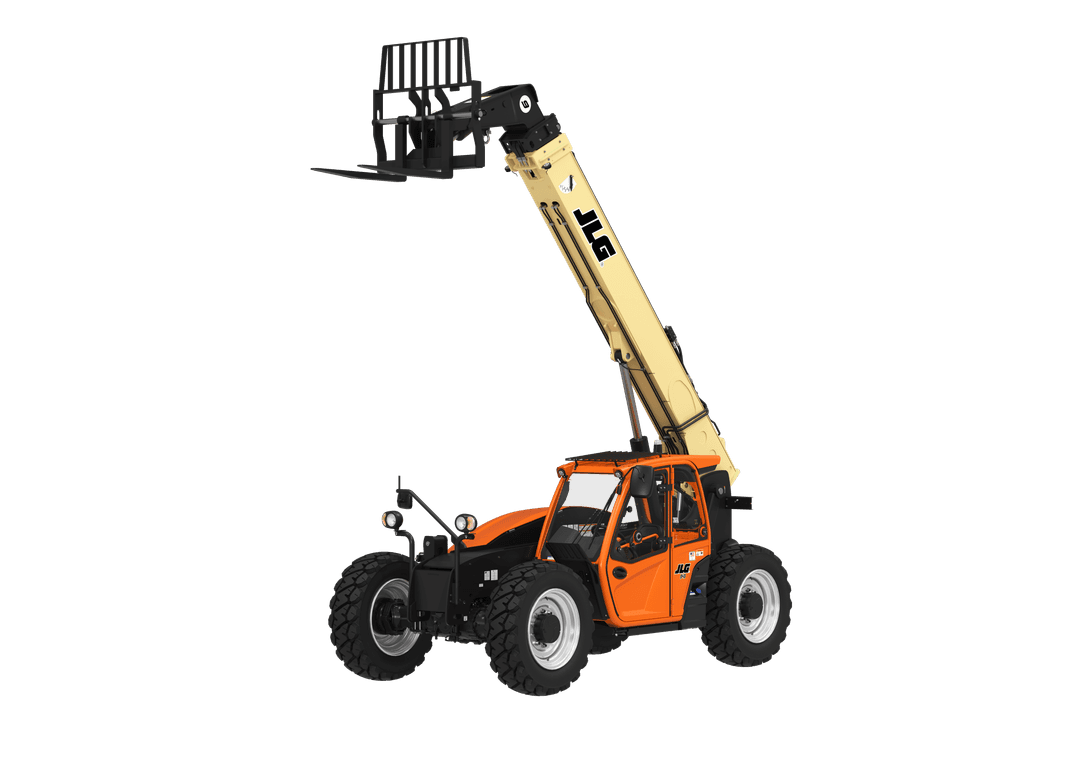

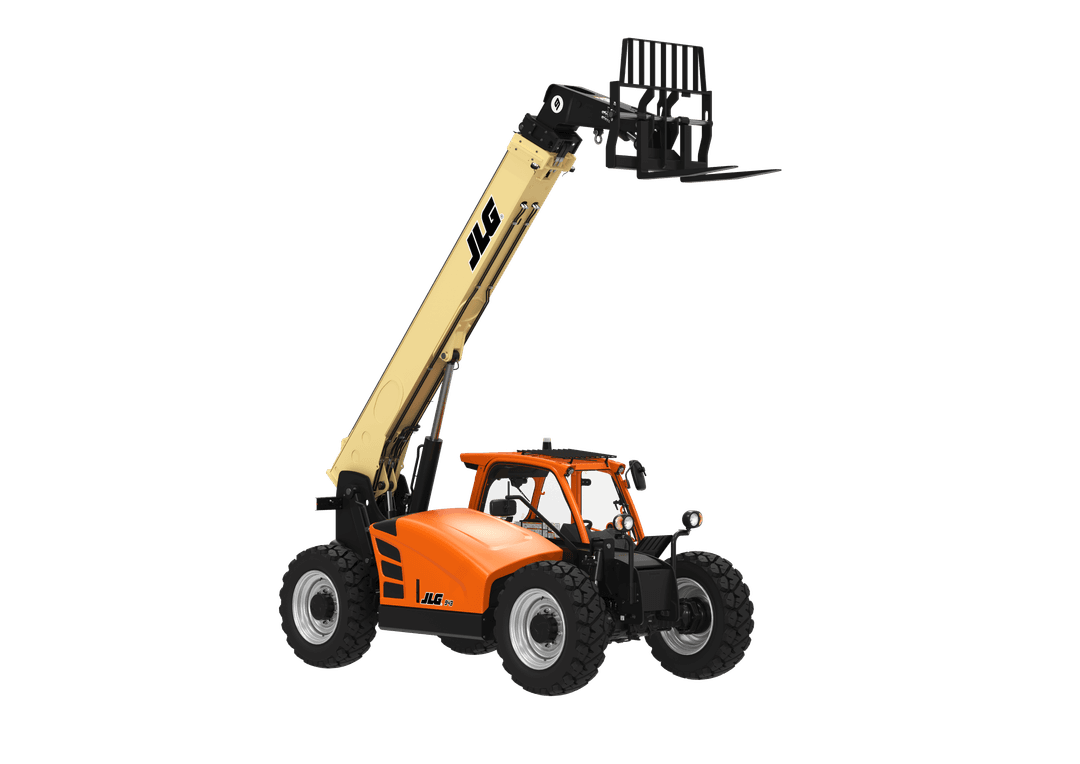

JLG® Telehandler

943

JLG® Telehandler

Key Specs

SEE ALL SPECS

Maximum Lift Capacity: 9000 lb / 4082.33 kg
Maximum Lift Height: 43 ft / 13.11 m
Maximum Reach: 30 ft 5 in. / 9.27 m

SEE ALL SPECS

Performance
Drawbar Pull	22751 lb / 10319.68 kg
Frame Leveling	10 Degrees
Lift Capacity at Full Height	7000 lb / 3175.15 kg
Lift Capacity at Max Reach	1200 lb / 544.31 kg
Load Center	2 ft / 0.61 m
Maximum Lift Capacity	9000 lb / 4082.33 kg
Maximum Lift Height	43 ft / 13.11 m
Maximum Reach	30 ft 5 in. / 9.27 m
Outriggers or Stabilizers	No
Outside Turning Radius	12 ft / 3.66 m
Speed - Maximum Lift	13 sec.
Speed - Maximum Lower	9 sec.
Speed - Maximum Telescope In	13 sec.
Speed - Maximum Telescope Out	15 sec.
Speed - Maximum Travel	19 mph / 30.58 km/h

Dimensional Data
Ground Clearance	1 ft 5 in. / 0.43 m
Machine Height	8 ft 2 in. / 2.49 m
Machine Length	19 ft 9 in. / 6.02 m
Machine Width	8 ft 1 in. / 2.46 m
Tire Size	370/75-28
Wheelbase	11 ft 3 in. / 3.43 m

Power Source
Capacity - Fuel Tank	38.3 gal. / 144.98 L
Engine Horsepower	110 hp / 82.06 kW
Engine Manufacturer	Cummins
Engine Model	QSF3.8L Tier 4 Final
Maximum Engine RPM	2500 rpm

General
Axle-Front	High Bias, Limited Slip
Axle-Rear	Planetary
Function Pump Type	Load Sensing Piston
Operating Vehicle Weight	24912 lb / 11299.89 kg
Service Brake Type	Wet Multi-Disc
Transmission - Nr Forward Gears Standard	4
Transmission - Nr Reverse Gears	3
Transmission Type	Powershift

Key Features

SEE ALL FEATURES

Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera

SEE ALL FEATURES

Take Virtual Tour

Compare Models

Previous Model | Next Model

BIM Files

File Format* .rfa .ifc

If your download doesn't work please Contact Us.

Performance
Drawbar Pull	22751 lb / 10319.68 kg
Frame Leveling	10 Degrees
Lift Capacity at Full Height	7000 lb / 3175.15 kg
Lift Capacity at Max Reach	1200 lb / 544.31 kg
Load Center	2 ft / 0.61 m
Maximum Lift Capacity	9000 lb / 4082.33 kg
Maximum Lift Height	43 ft / 13.11 m
Maximum Reach	30 ft 5 in. / 9.27 m
Outriggers or Stabilizers	No
Outside Turning Radius	12 ft / 3.66 m
Speed - Maximum Lift	13 sec.
Speed - Maximum Lower	9 sec.
Speed - Maximum Telescope In	13 sec.
Speed - Maximum Telescope Out	15 sec.
Speed - Maximum Travel	19 mph / 30.58 km/h

Dimensional Data
Ground Clearance	1 ft 5 in. / 0.43 m
Machine Height	8 ft 2 in. / 2.49 m
Machine Length	19 ft 9 in. / 6.02 m
Machine Width	8 ft 1 in. / 2.46 m
Tire Size	370/75-28
Wheelbase	11 ft 3 in. / 3.43 m

Power Source
Capacity - Fuel Tank	38.3 gal. / 144.98 L
Engine Horsepower	110 hp / 82.06 kW
Engine Manufacturer	Cummins
Engine Model	QSF3.8L Tier 4 Final
Maximum Engine RPM	2500 rpm

General
Axle-Front	High Bias, Limited Slip
Axle-Rear	Planetary
Function Pump Type	Load Sensing Piston
Operating Vehicle Weight	24912 lb / 11299.89 kg
Service Brake Type	Wet Multi-Disc
Transmission - Nr Forward Gears Standard	4
Transmission - Nr Reverse Gears	3
Transmission Type	Powershift

Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
Increased versatility—wide range of attachment options
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
